Some bow window replacements are a straightforward glass and frame swap. This one wasn't. On this North York, Toronto home, the bow window and the structure supporting it — the knee wall beneath the glass, often called the bay box — had both reached the end of their service life. Here's a look at the full rebuild, what changed, and why a proper bow window replacement sometimes means more than just new glass.
Why This Bow Window Needed a Full Rebuild
The original bow window had four window units set at a gentle curve — the defining feature of a bow window, as opposed to the sharper three-panel angles of a bay window. Above the sill, the glass and frames had aged out. Below the sill, the knee wall supporting the whole unit was in worse shape: painted wood-look panels that had cracked, chipped, and weathered over the years, visibly failing where they met the driveway and foundation line.
That combination — tired glass above, a deteriorating structural box below — is common on bow and bay windows built with painted wood-composite panels, especially on homes exposed to Toronto's freeze-thaw winters and summer humidity swings. Once the knee wall starts failing, patchwork repairs rarely hold; the fix is to rebuild the structure properly.
What the Rebuild Involved
This wasn't a simple insert replacement. The project included:
- A full structural rebuild of the knee wall (bay box) supporting the bow window, not a patch over the existing panels.
- New Energy Star certified vinyl windows in the same four-unit bow configuration, replacing the aging frames and glass.
- A vinyl siding finish on the rebuilt knee wall, matching the home's existing siding, in place of the original painted wood-look panels.
Finishing the knee wall in vinyl siding instead of painted panels is a meaningful long-term upgrade on its own. Vinyl doesn't need repainting, doesn't crack the way painted composite panels do over time, and holds up to Ontario's weather with far less maintenance.
Bay Window vs. Bow Window
It's a common point of confusion, and worth clarifying since both terms get used interchangeably. A bay window typically uses three panels set at sharper angles — often a fixed centre unit flanked by two angled sides. A bow window, like this one, uses four or more panels arranged in a gentler, continuous curve, which is what gives it that smooth, rounded look from both inside and outside the home.
What a "Walking Bow" Window Actually Is

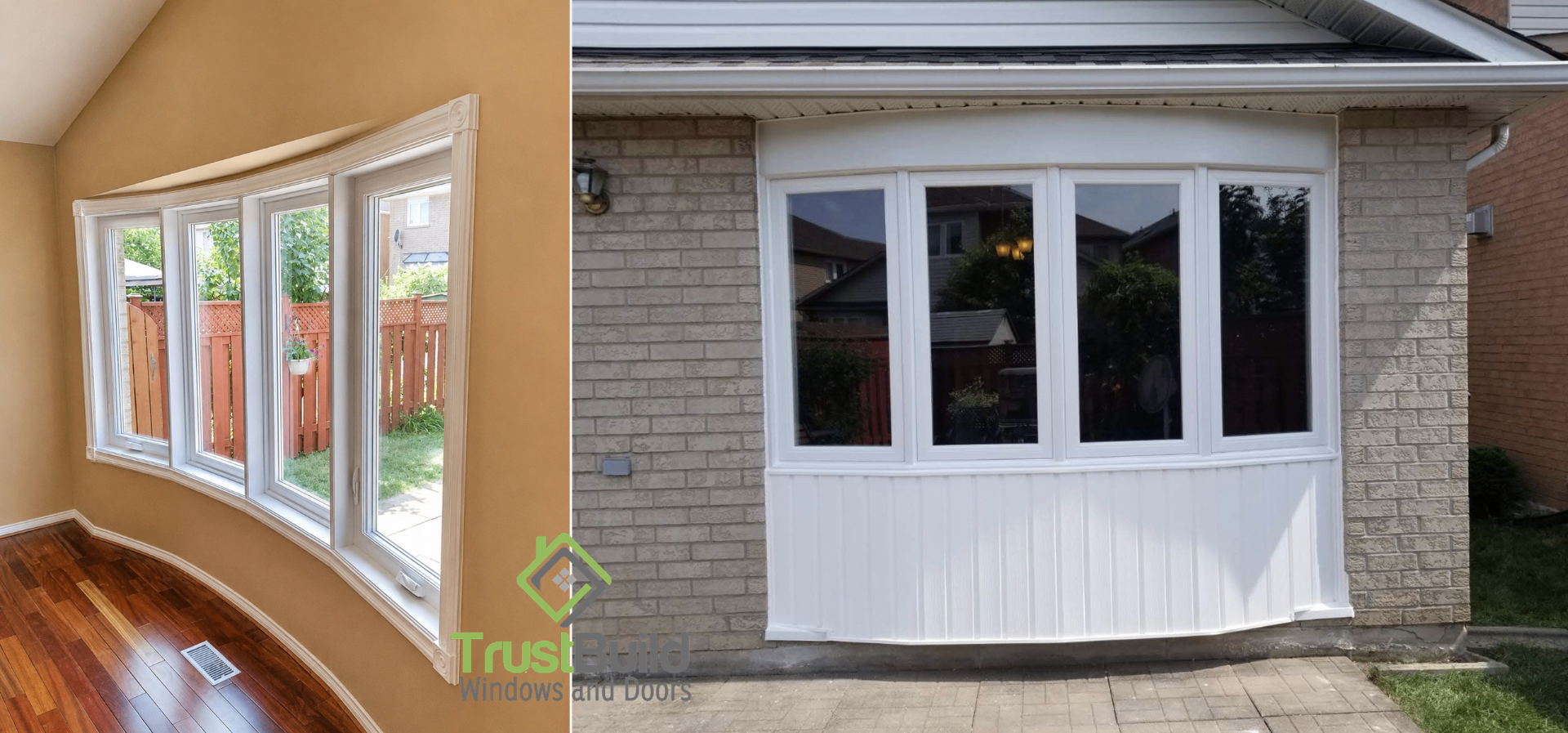

Some bow and bay windows are built on a seat board or shelf — glass you look through and sit near, but not floor you stand on. Others are built with a supporting knee wall carrying the structure down to the foundation, letting the interior floor extend right into the curve. That second version is sometimes called a walk-out bay, or in this case, since it's a bow, a walking bow window. As the interior photo below shows, the hardwood flooring runs straight into the curved bow, with matching trim following the curve of the wall — genuine usable floor space, not just a wider view.
Vinyl Interior Casing — No Painting Required
The interior trim around this bow window was finished in vinyl casing rather than wood. It's one of the interior trim and casing options, and on a curved installation like this one, it comes with a practical advantage: vinyl casing never needs to be painted or repainted, which matters on a curved run of trim where painting is more time-consuming to begin with. For homeowners who want a finished look without the ongoing maintenance, it's worth asking about directly.
A North York Neighbourhood Built for This Upgrade
North York has no shortage of homes from the era when painted wood-composite bay and bow boxes were standard — which means a lot of them are approaching, or past, the point where the knee wall itself needs attention, not just the glass above it. If your home's bow or bay window has a knee wall that's cracking, chalking, or visibly deteriorating at the base, it's worth having it assessed before it becomes a bigger structural issue.
What Trust Build Installs
Every window Trust Build installs is Energy Star certified for the Canadian climate zone, fitted by trained, certified crews, and backed by a lifetime transferable warranty. Because a full bow or bay window rebuild is a bigger project, 0% interest financing is available so it can be done properly in one go. Trust Build has completed projects like this for homeowners across Southern Ontario, including the GTA and Toronto.
Considering a Bow or Bay Window Upgrade?
If your bow or bay window's frame, glass, or the wall beneath it needs attention, reach out at hello@trustbuildwindows.com to have it assessed.
